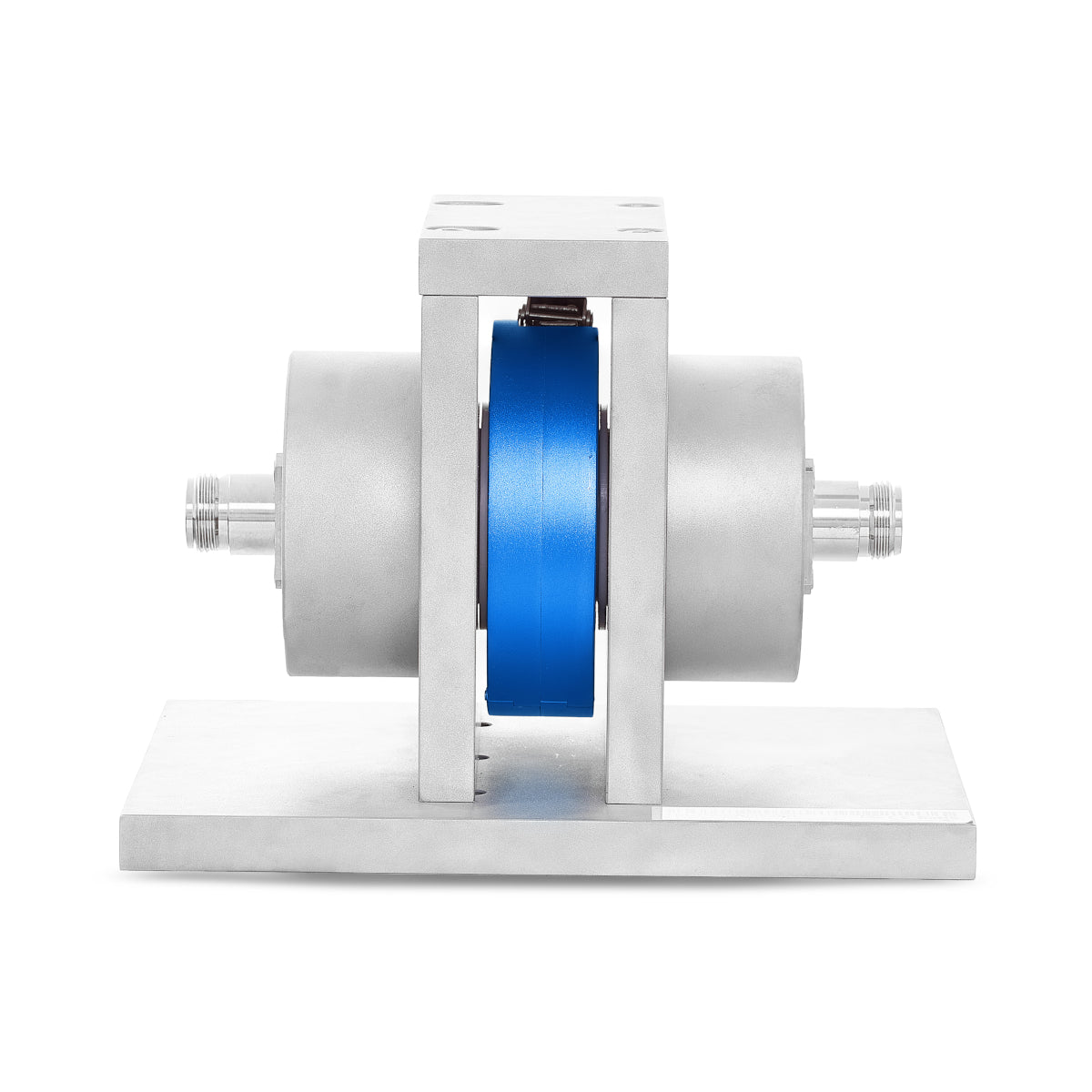

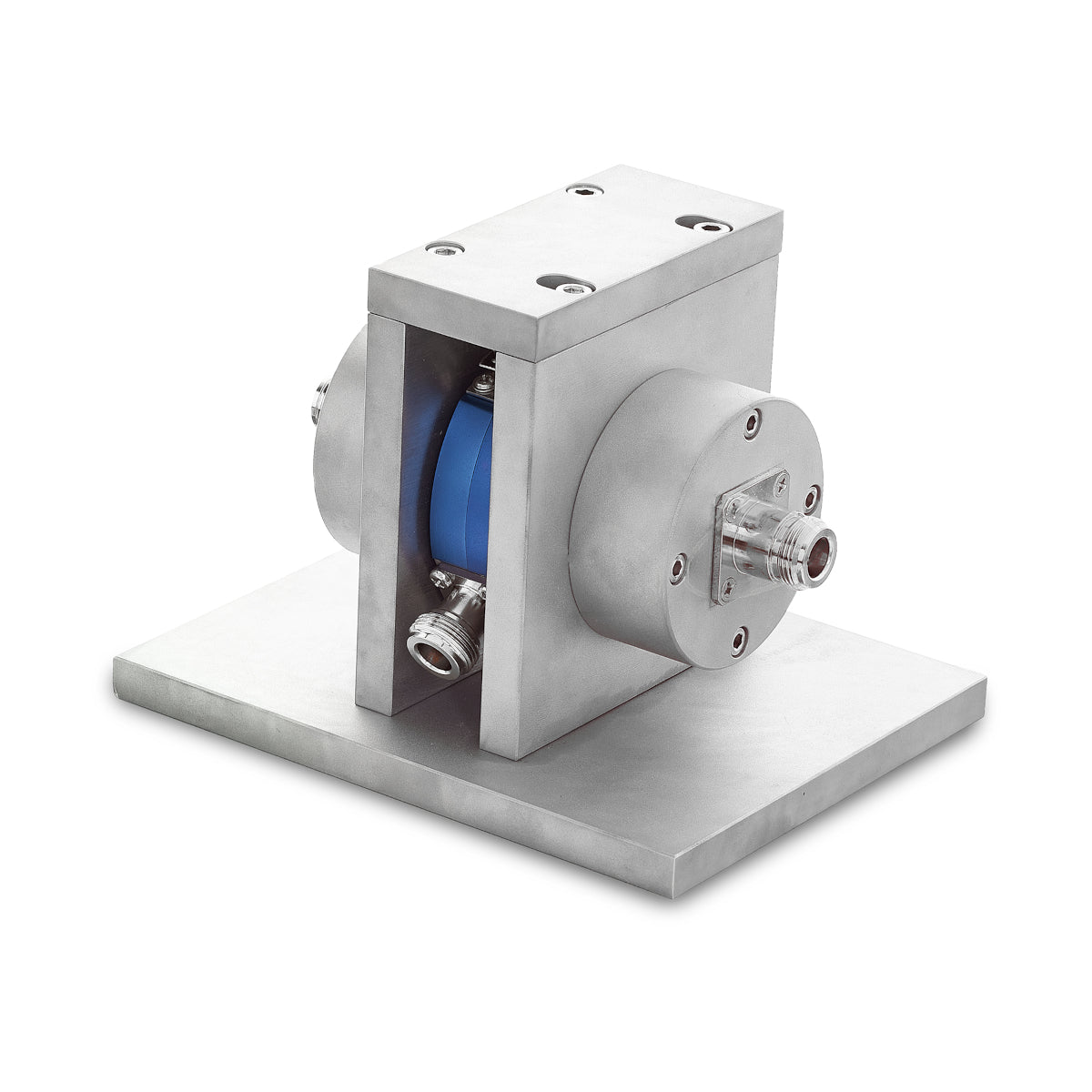

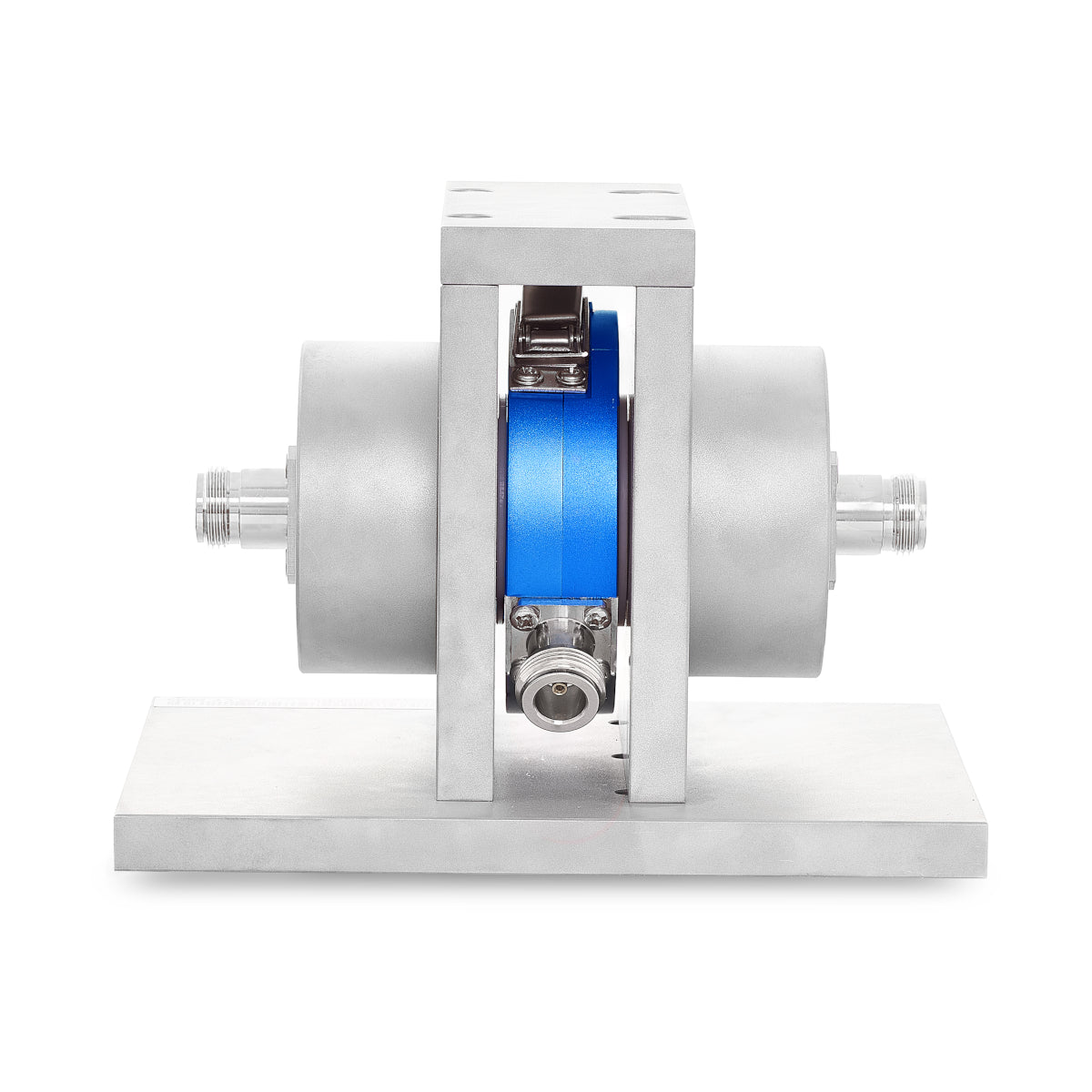

Tekbox TBCP2-20M700 RF Current Monitoring Probe
Use our chat for personal support. Or contact us via +46 73-202 00 59 or sales@GOmeasure.se
- Characterized frequency range: 10 kHz to 800 MHz
- 3dB bandwidth: 20 MHz – 700 MHz
- Transfer impedance: 20 dBΩ, typ.
- Max. primary current (DC – 400Hz): >100A, see graph in chapter 5
- Max. primary current (RF): 15 A
- Max. pulse current: 300A
- Current-time product: 0.001 As
- Max. core temperature: 125 °C
- Connector type: N female
- Aperture diameter: 32 mm
- Outside diameter: 73 mm
- Height: 20 mm
- Weight: 320 g
:%20%26gt;100A,%20see%20graph%20in%20chapter%205%0AMax.%20primary%20c...
){kind=link}
Discover the possibilities
More information
Description

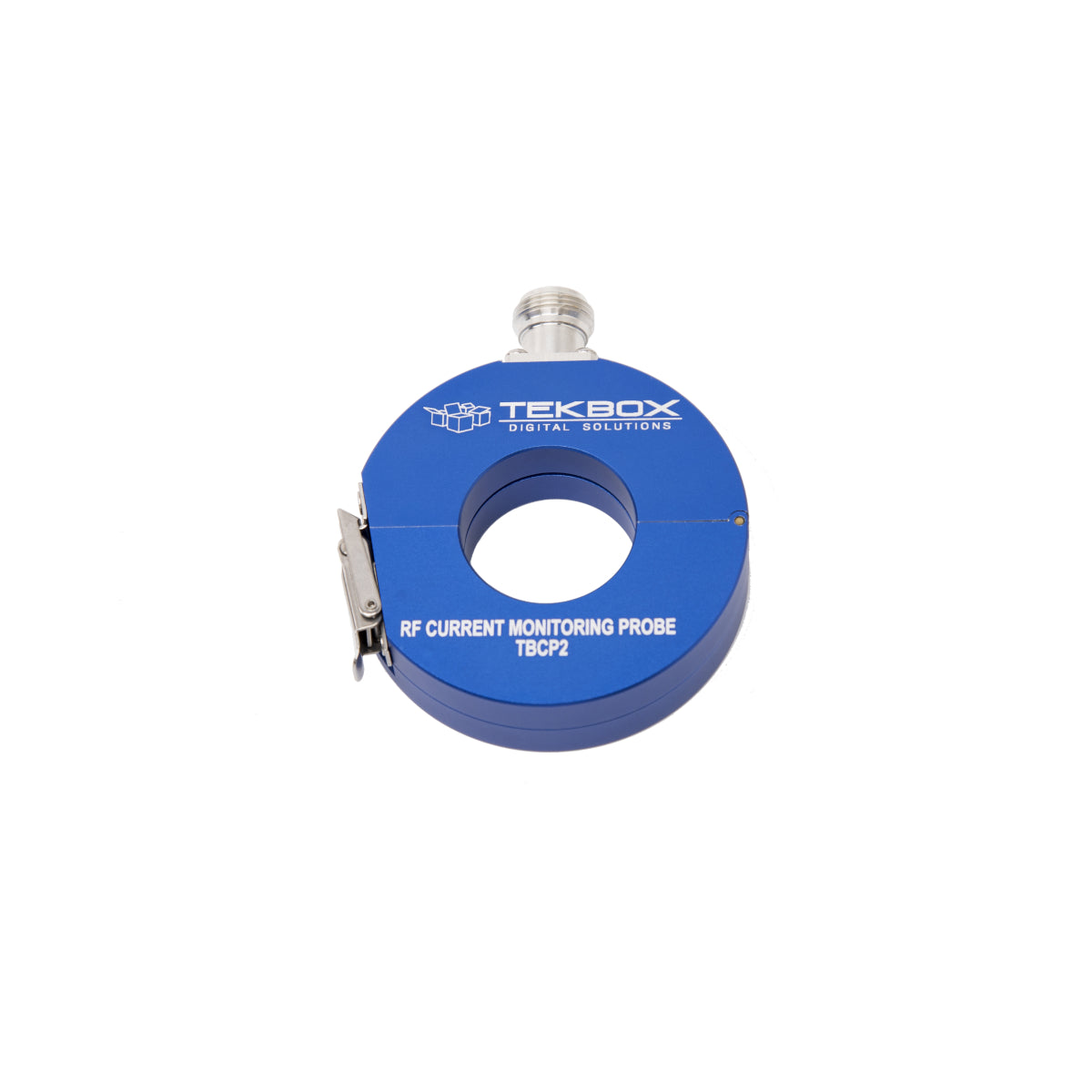

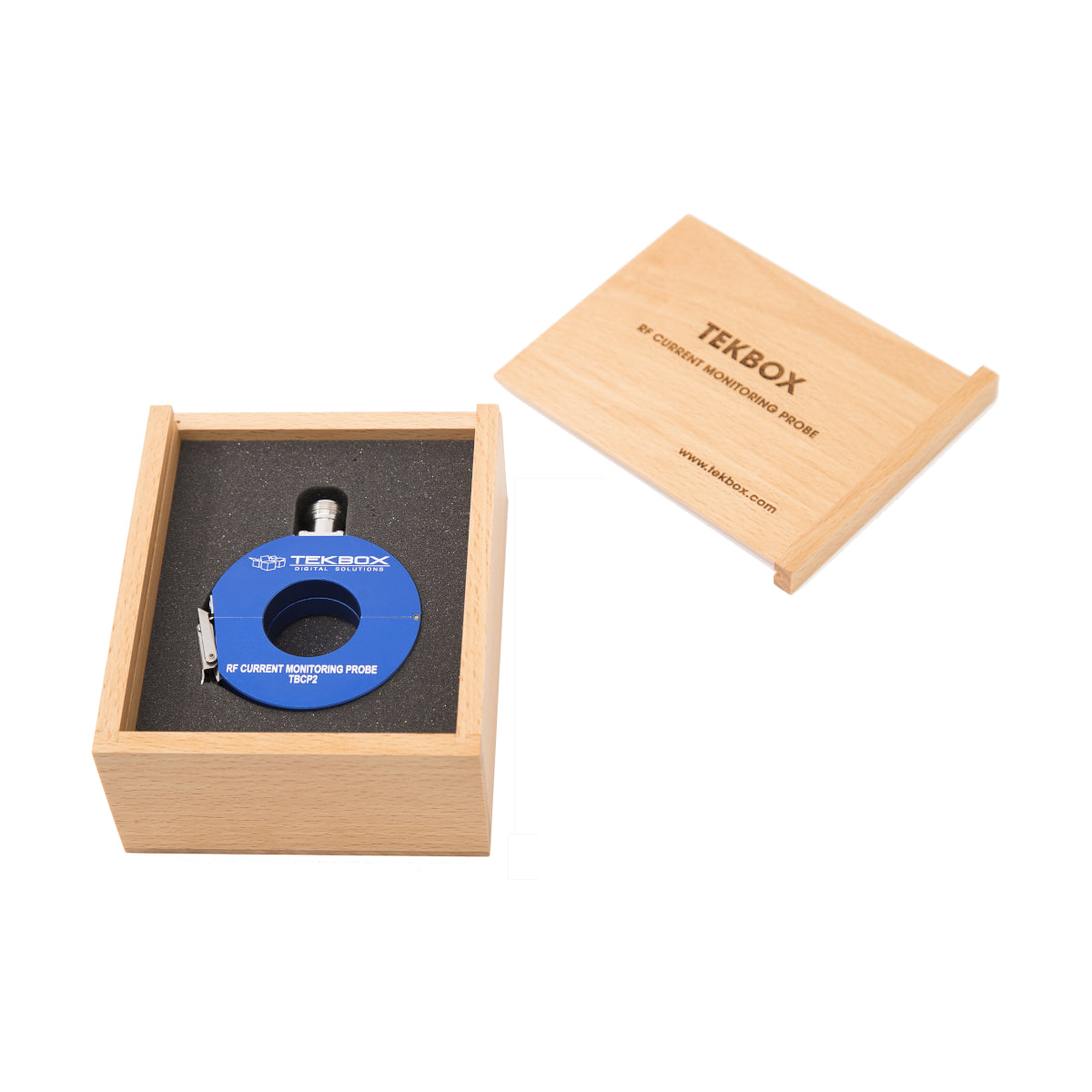

The TBCP2-20M700 is a snap-on RF current monitoring probe, expanding the Tekbox product range of affordable EMC pre-compliance test equipment. The probe is characterized over the frequency range from 10 kHz to 800 MHz. It has a typical transfer impedance of 21 dBΩ and a 3dB bandwidth from 25 MHz – 700 MHz. The aperture of the RF current monitoring probe is 32 mm. It is equipped with a hinge for easy installation.
