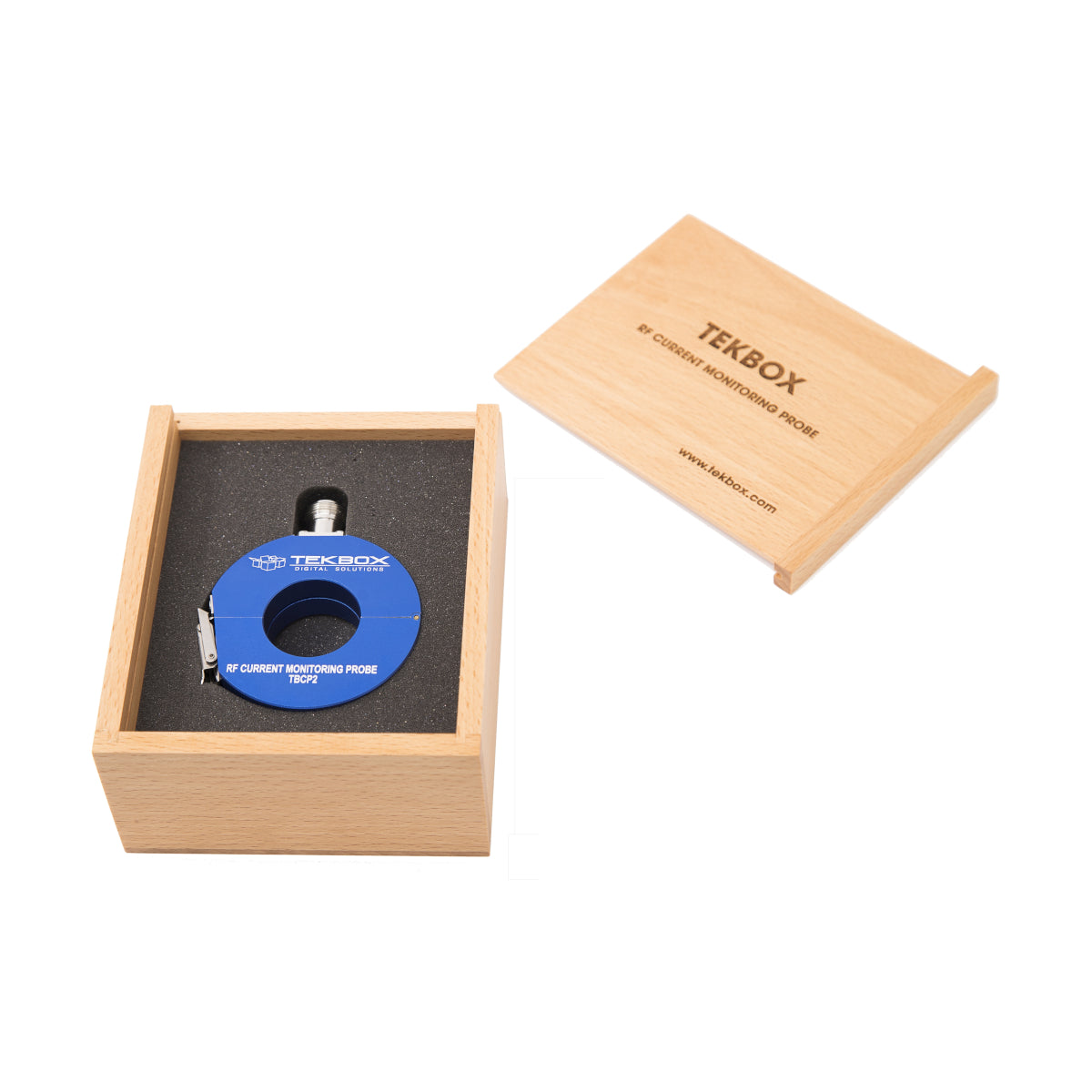

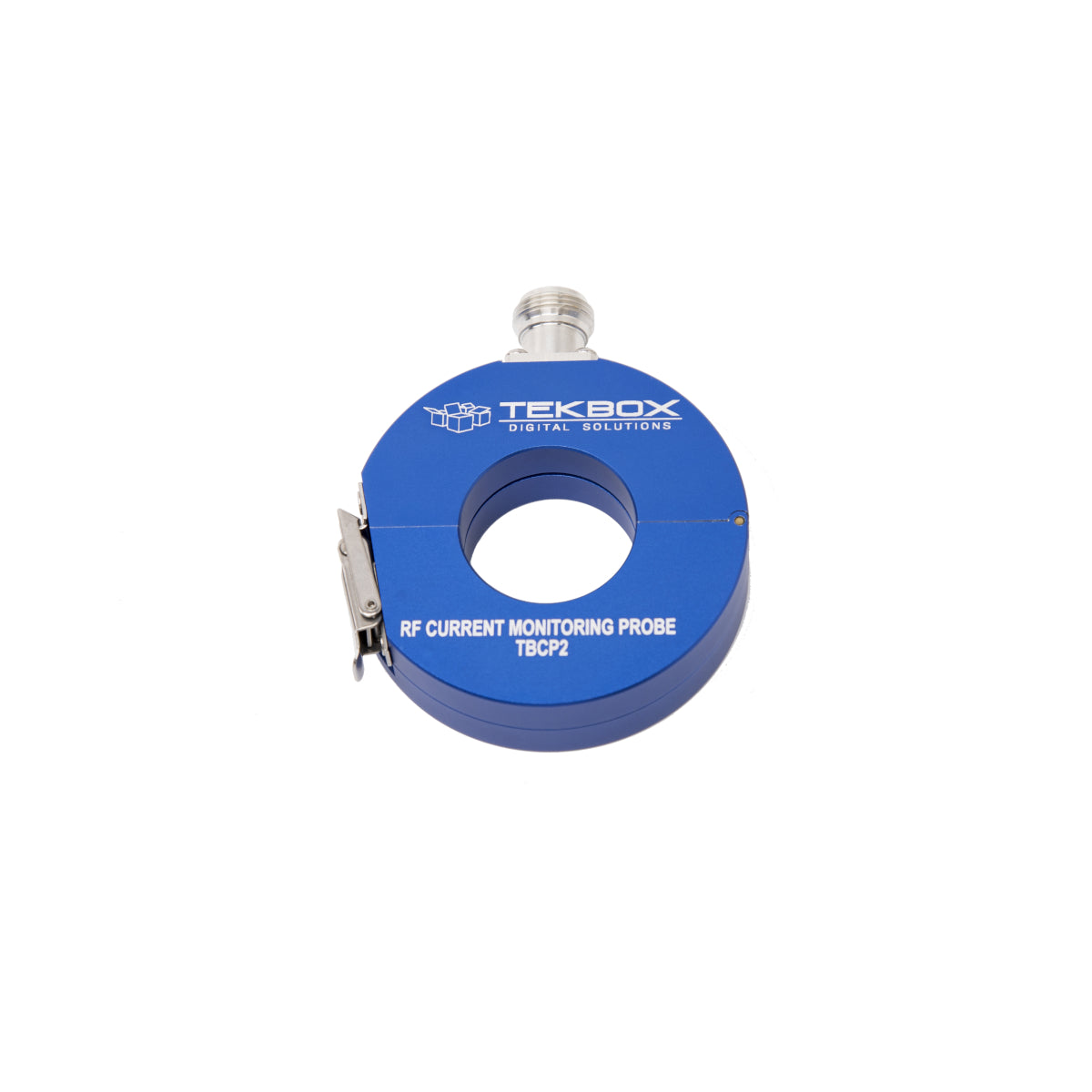

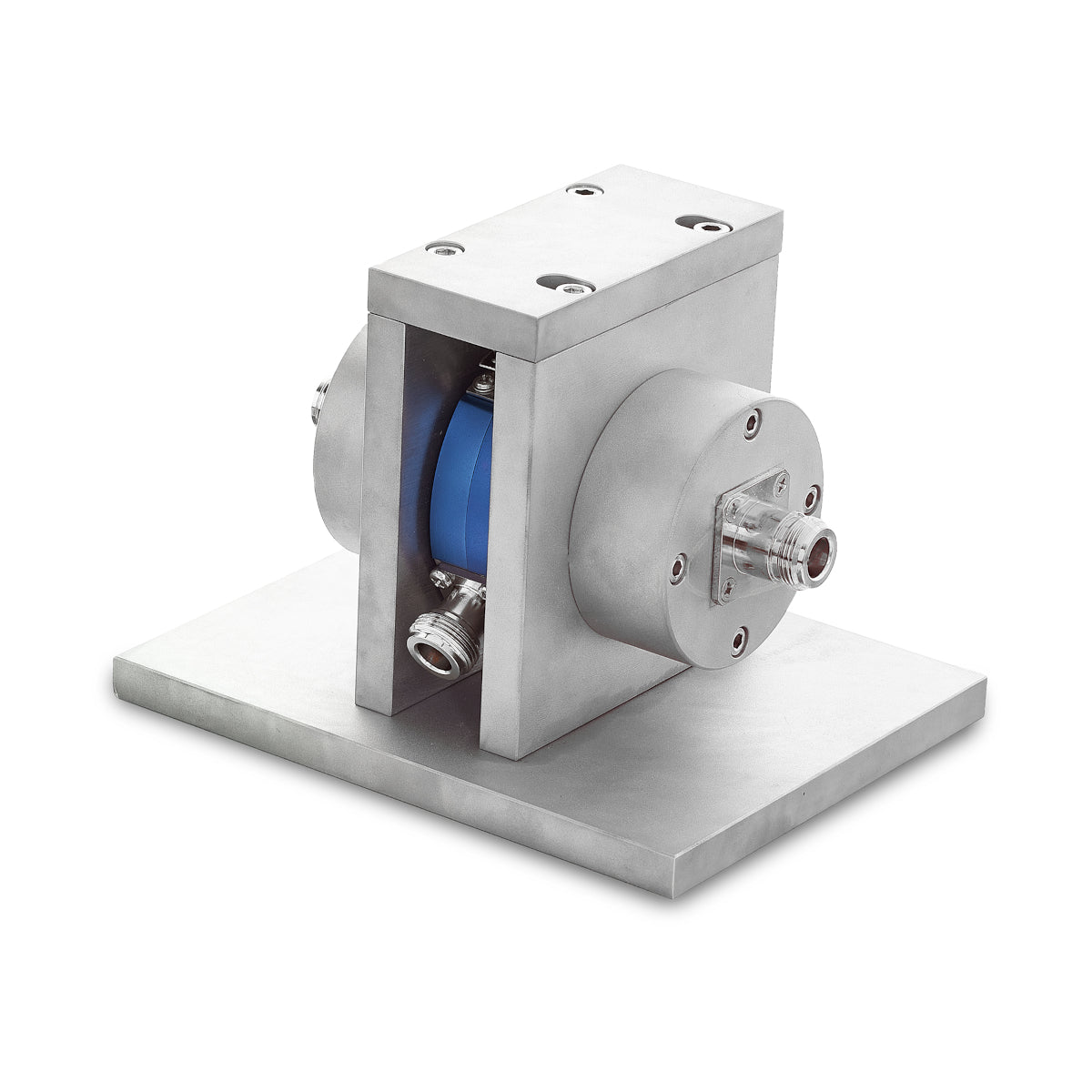

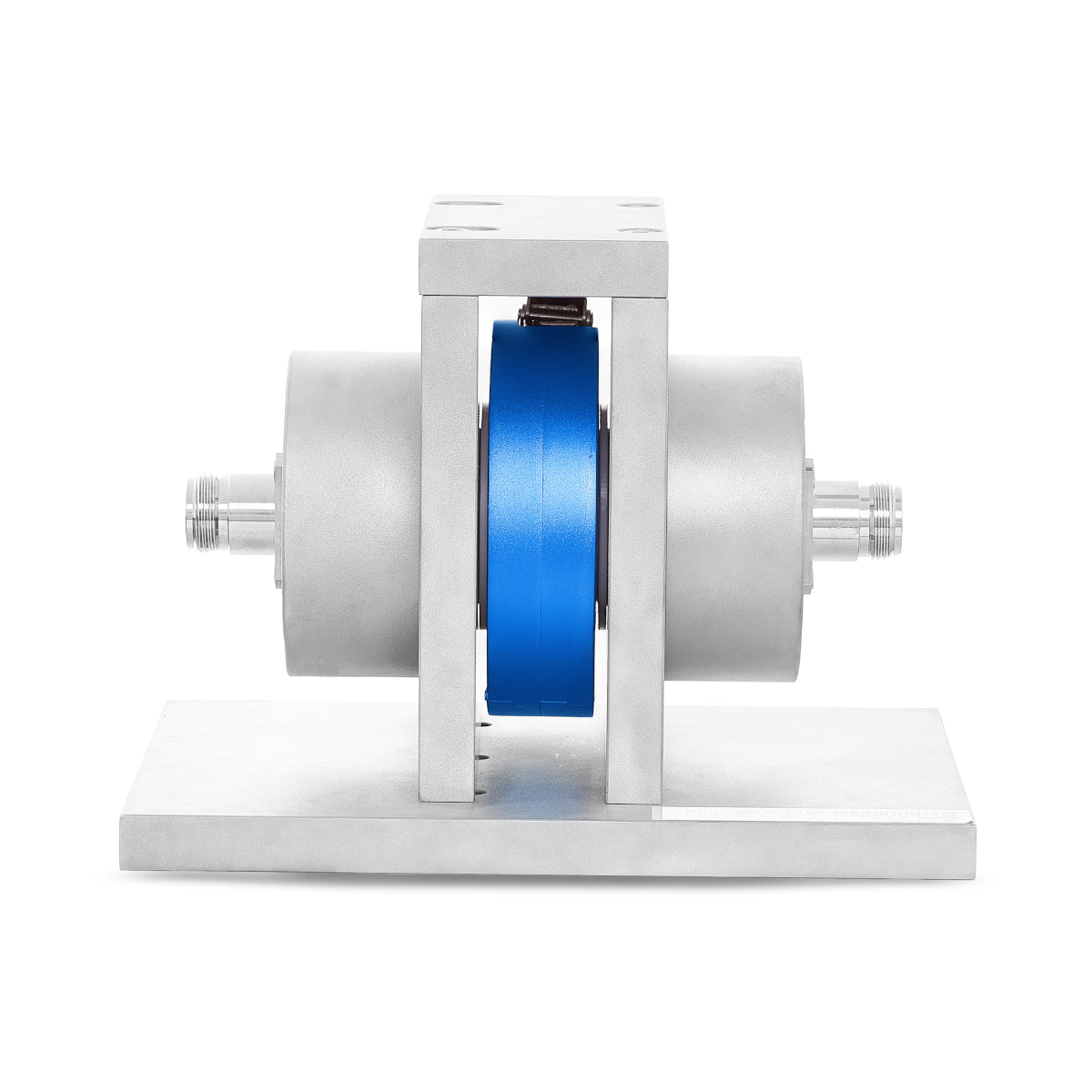

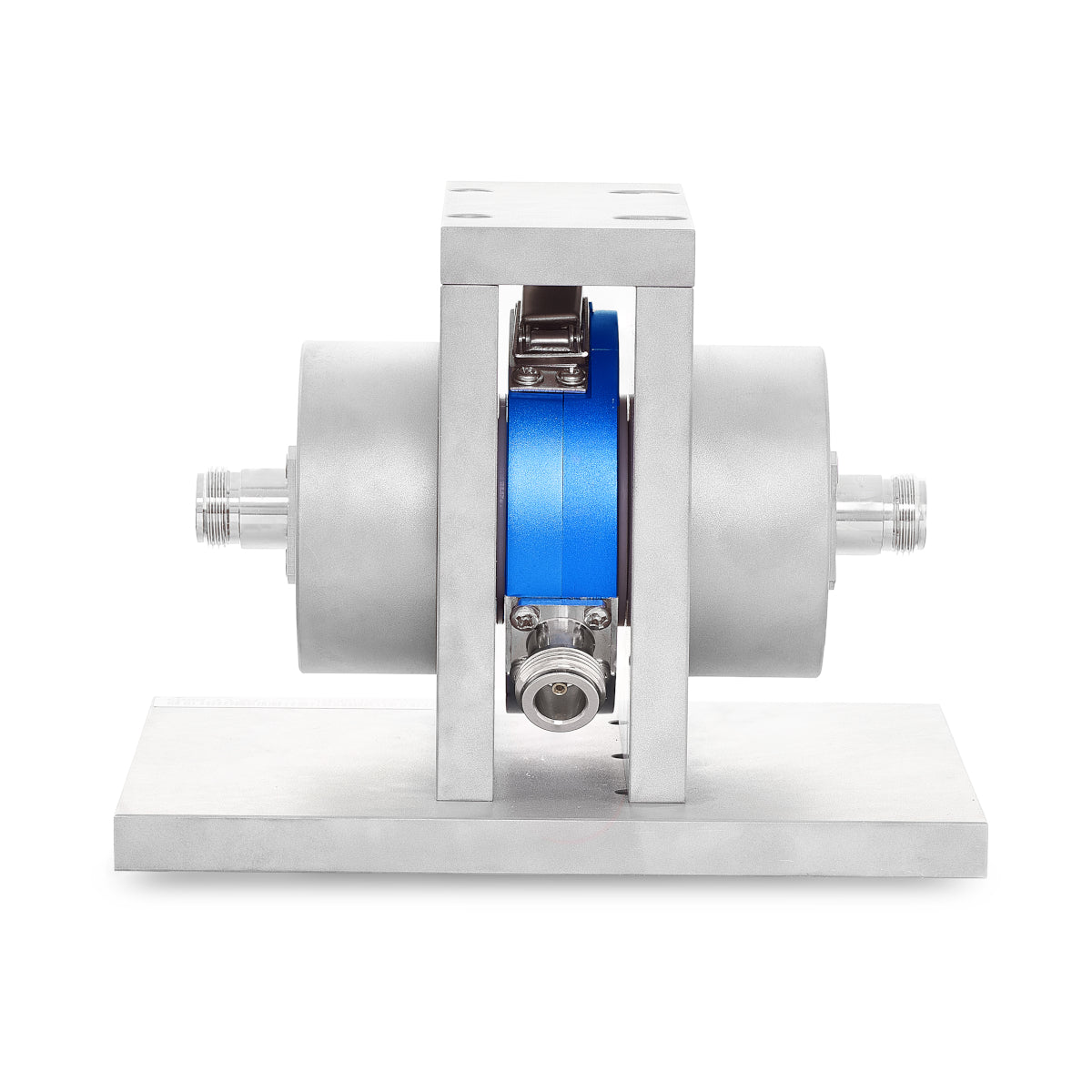

Tekbox TBCP2-30M1000 RF Current Monitoring Probe
Use our chat for personal support. Or contact us via +46 73-202 00 59 or sales@GOmeasure.se
- Characterized frequency range: 10 kHz to 1 GHz
- 3 dB bandwidth: 30 MHz to 900 MHz
- Transfer impedance: 22 dBΩ ± 2 dBΩ from 25 MHz – 1 GHz
- Max. primary current (DC – 400Hz): >50A, see graph in chapter 5
- Max. primary current (RF): 10 A
- Max. pulse current: 50A
- Current-time product: 0.007 As
- Max. core temperature: 125 °C
- Connector type: N female
- Aperture diameter: 32 mm
- Outside diameter: 73 mm
- Height: 20 mm
- Weight: 320 g
:%20%26gt;50A,%20see%20graph%20in%20cha...
){kind=link}
Discover the possibilities
More information
Description
The TBCP2-30M1000 is a snap-on RF current monitoring probe, expanding the Tekbox product range of affordable EMC pre-compliance test equipment. The probe is characterized over the frequency range from 10 kHz to 1 GHz. It has a 3 dB bandwidth from 30 MHz – 900 MHz and a transfer impedance of 22 dBΩ ± 2 dBΩ from 25 MHz – 1 GHz. The aperture of the RF current monitoring probe is 32 mm.
Specifications:
- Characterized frequency range: 10 kHz to 1 GHz
- 3 dB bandwidth: 30 MHz to 900 MHz
- Transfer impedance: 22 dBΩ ± 2 dBΩ from 25 MHz – 1 GHz
- Max. primary current (DC – 400Hz): >50A, see graph in chapter 5
- Max. primary current (RF): 10 A
- Max. pulse current: 50A
- Current-time product: 0.007 As
- Max. core temperature: 125 °C
- Connector type: N female
- Aperture diameter: 32 mm
- Outside diameter: 73 mm
- Height: 20 mm
- Weight: 320 g
