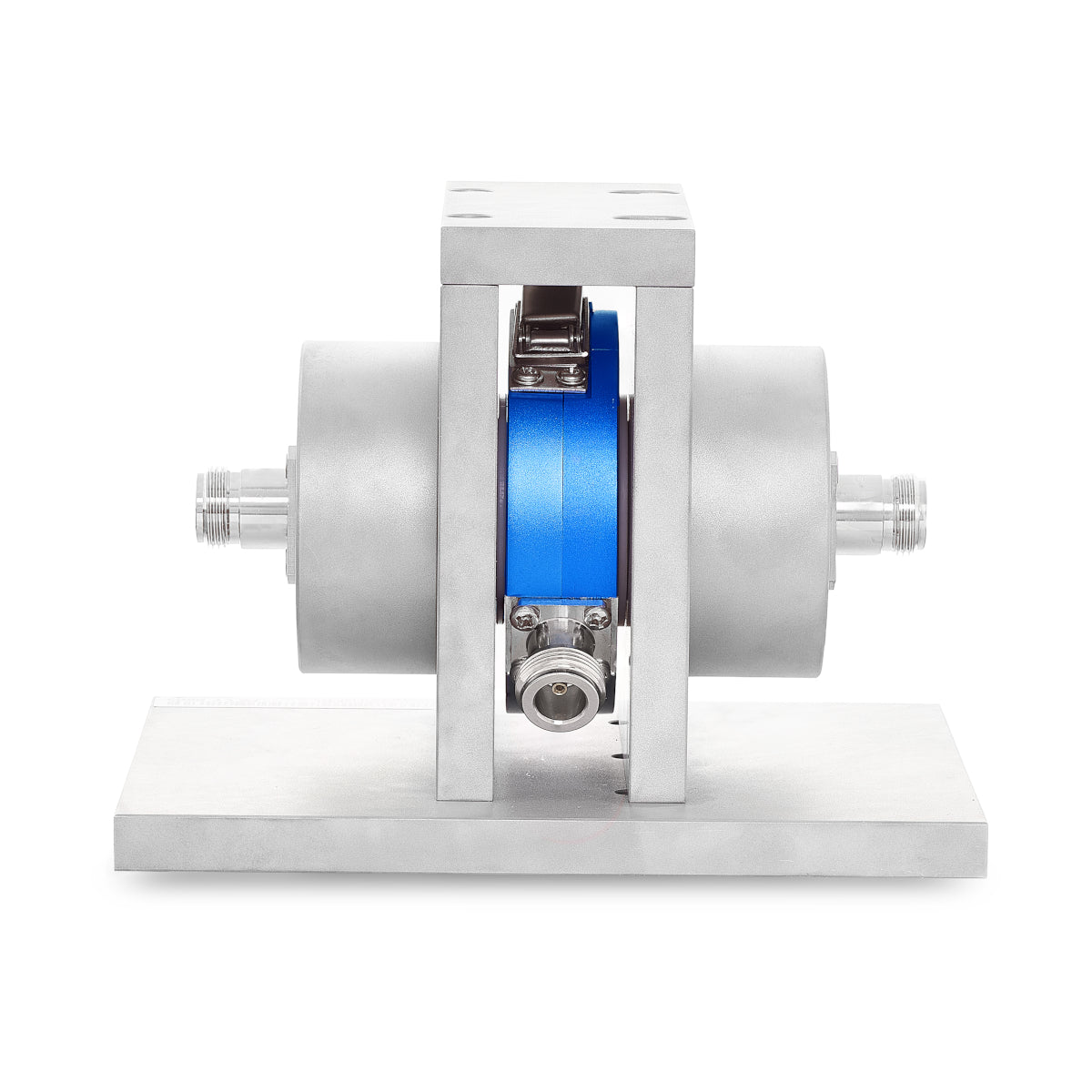

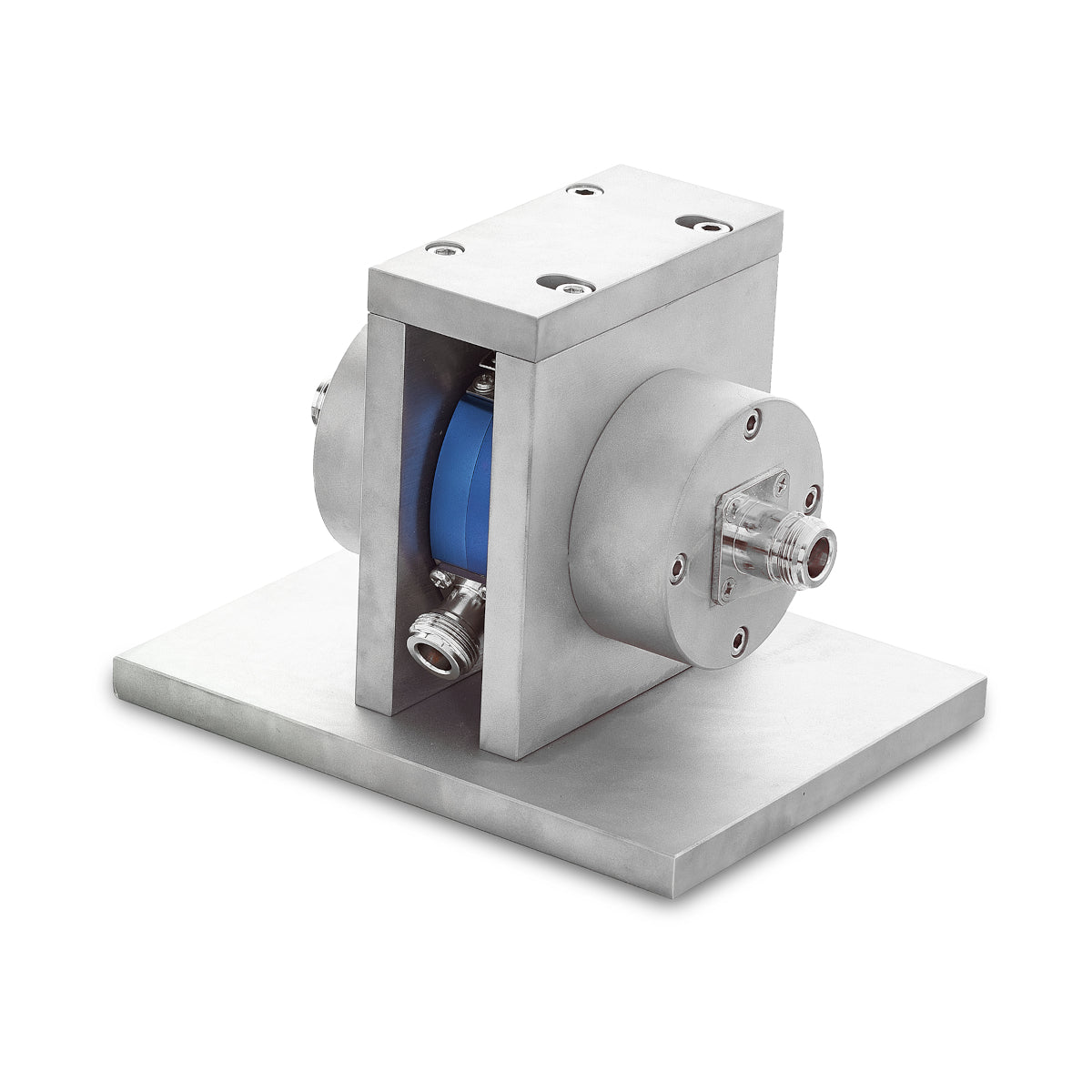

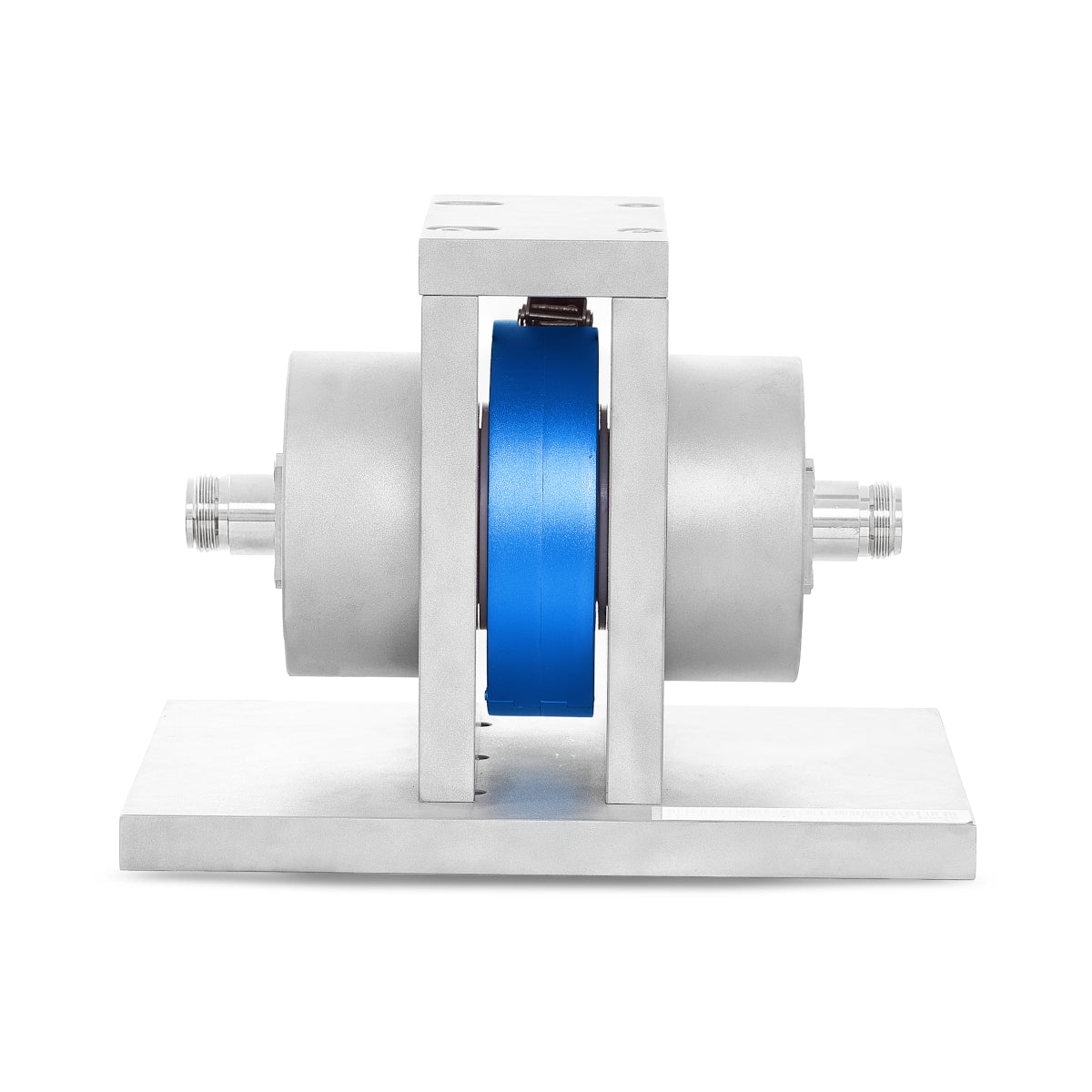

Tekbox TBCP2-500 RF Current Monitoring Probe
Use our chat for personal support. Or contact us via +46 73-202 00 59 or sales@GOmeasure.se
- Characterized frequency range: 1 kHz to 600 MHz
- Aperture diameter: 32 mm
- Outside diameter: 73 mm
- Height: 20 mm
- Weight: 320 g
- Connector type: N female
- Transfer impedance: 16 dBΩ in the flat region, typ.
- 3 dB bandwidth: 1 MHz to 500 MHz, typ.
- Max. primary current (DC – 400 Hz): 80 A
- Max. primary current (RF): 3 A
- Max. core temperature: 125 °C
Discover the possibilities
More information
Description
The TBCP2-500 is a snap-on RF current monitoring probe. The probe has a ver flat response with a 3dB bandwidth of 500 MHz and is characterized and useable in the frequency range from 1 kHz to 600 MHz. The aperture of the RF current monitoring probe is 32 mm. Its transfer impedance is 16 dB Ohm with a 3dB bandwidth from 1 MHz to 500 MHz.
Specifications:
- Characterized frequency range: 1 kHz to 600 MHz
- Aperture diameter: 32 mm
- Outside diameter: 73 mm
- Height: 20 mm
- Weight: 320 g
- Connector type: N female
- Transfer impedance: 16 dBΩ in the flat region, typ.
- 3 dB bandwidth: 1 MHz to 500 MHz, typ.
- Max. primary current (DC – 400 Hz): 80 A
- Max. primary current (RF): 3 A
- Max. core temperature: 125 °C
