Tekbox TBCP4-750 32mm RF Current Monitoring Probe
Use our chat for personal support. Or contact us via +45 31 33 18 19 or salg@GOmeasure.dk
- Characterized frequency range - 1 kHz to 1 GHz
- Aperture diameter - 32 mm
- Outside diameter - 73 mm
- Height - 20 mm
- Weight - 320 g
- Connector type - N female
- Transfer impedance - 20 dBΩ in the flat region, typ.
- 3 dB bandwidth - 1.5 MHz – 850 MHz, typ.
- Max. primary current (DC – 400 Hz) - 80 A
- Max. primary current (RF) - 3 A
- Max. core temperature - 125 °C
Discover the possibilities
More information
Description

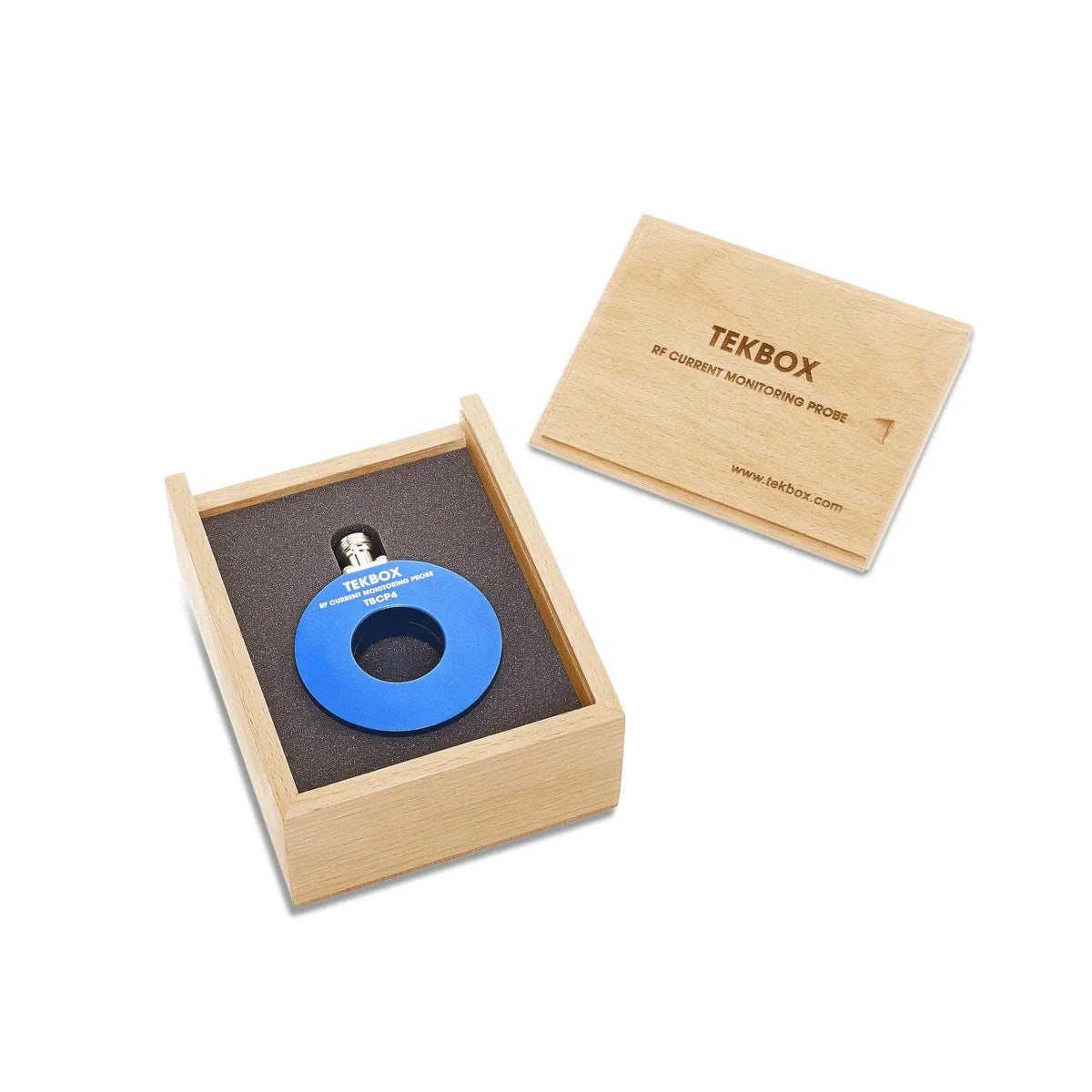

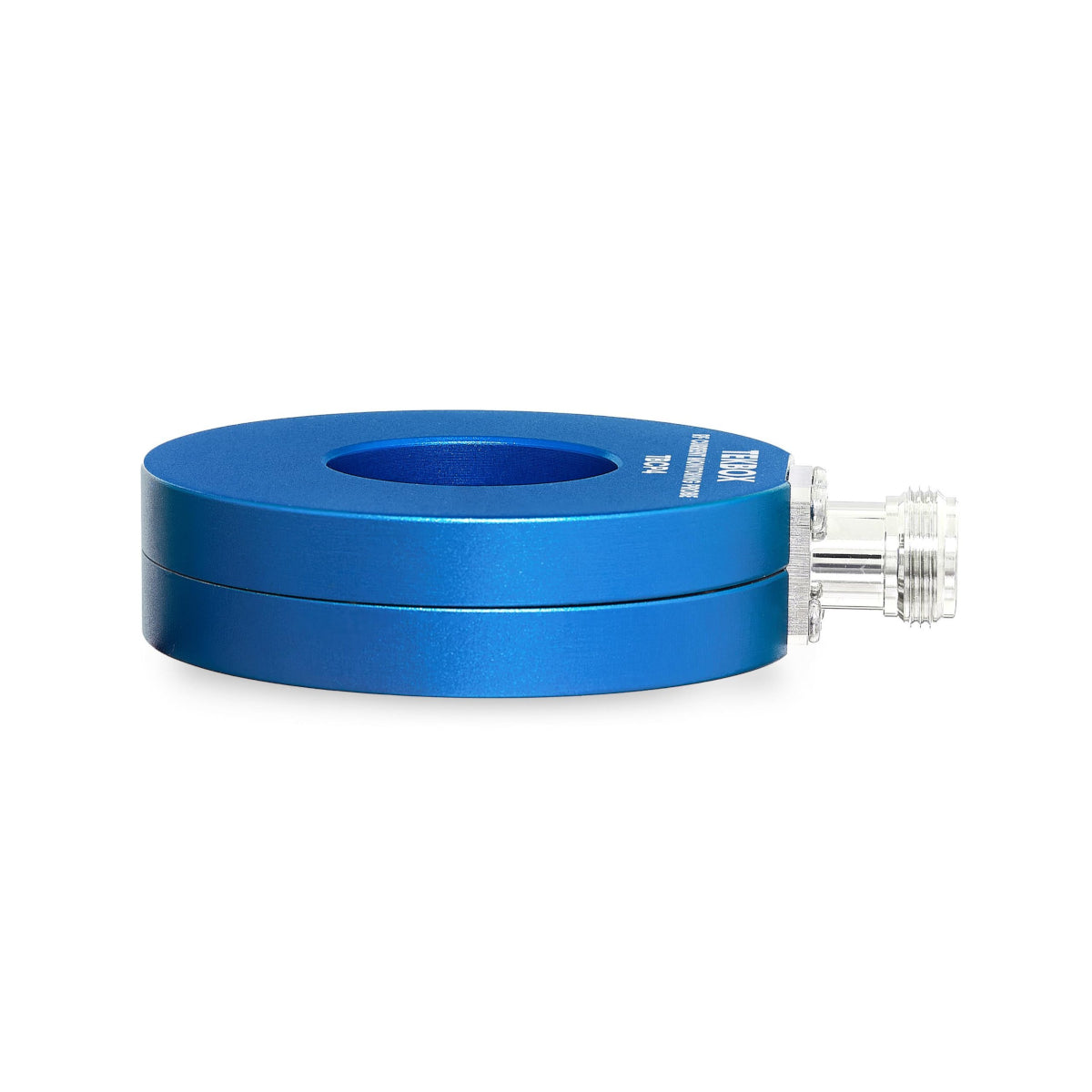

The TBCP4-750 is a fixed aperture RF current monitoring probe.
It has a very flat response with a 3dB bandwidth of 850 MHz and is characterized and usable over the frequency range from 1 kHz to 1 GHz. The aperture of the RF current monitoring probe is 32 mm. Its transfer impedance is 20 dB Ohm with a typical 3 dB bandwidth of 1.5 MHz to 850 MHz.

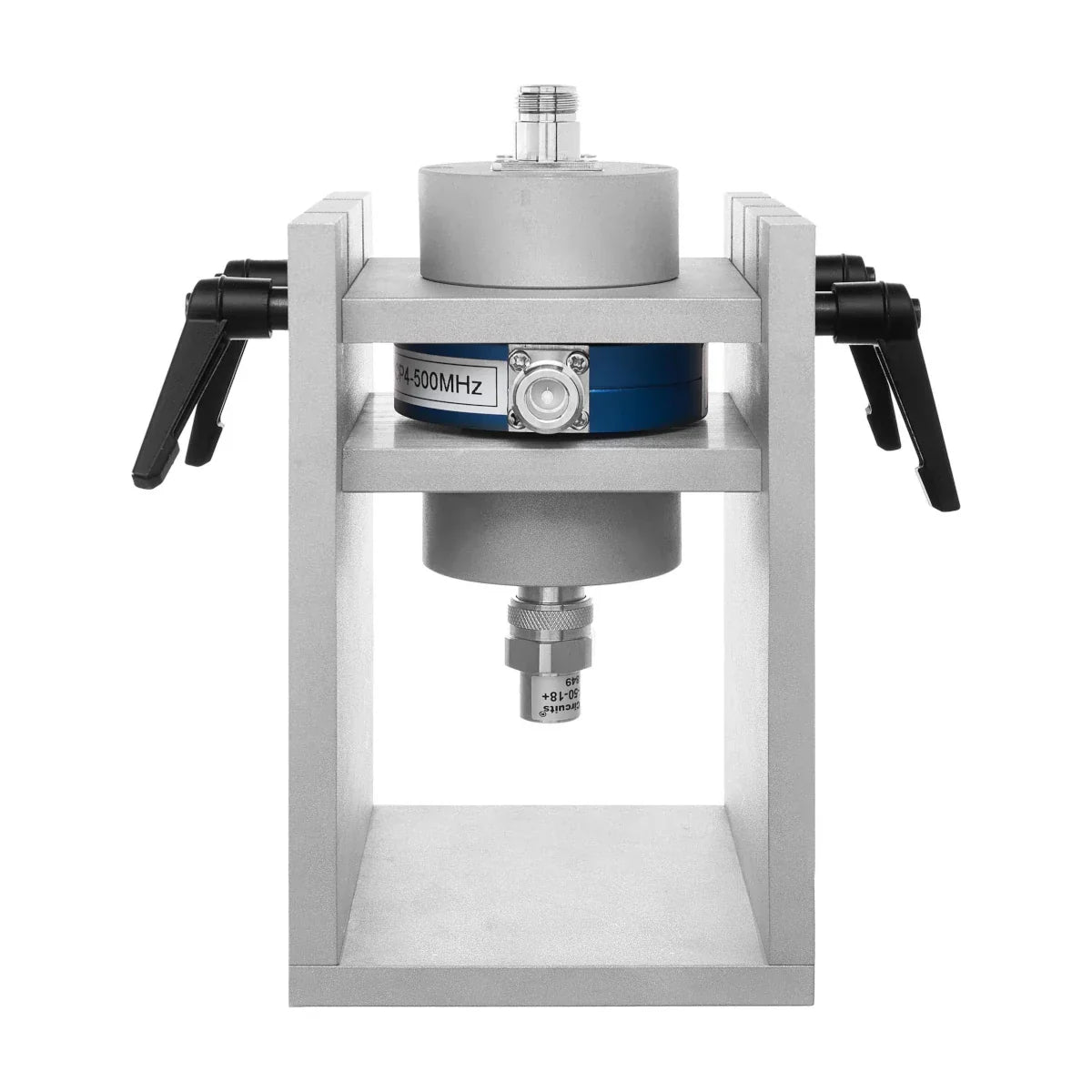

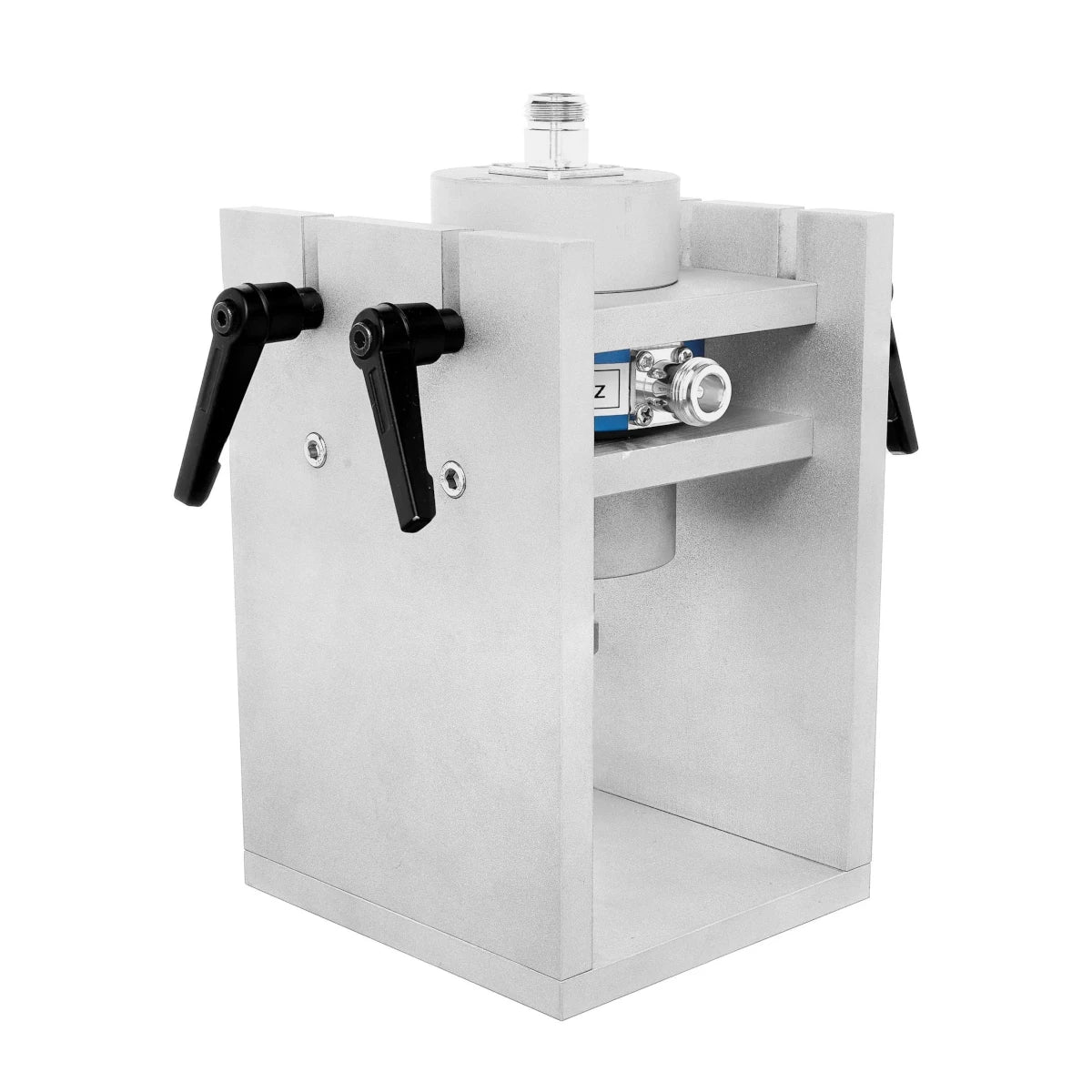

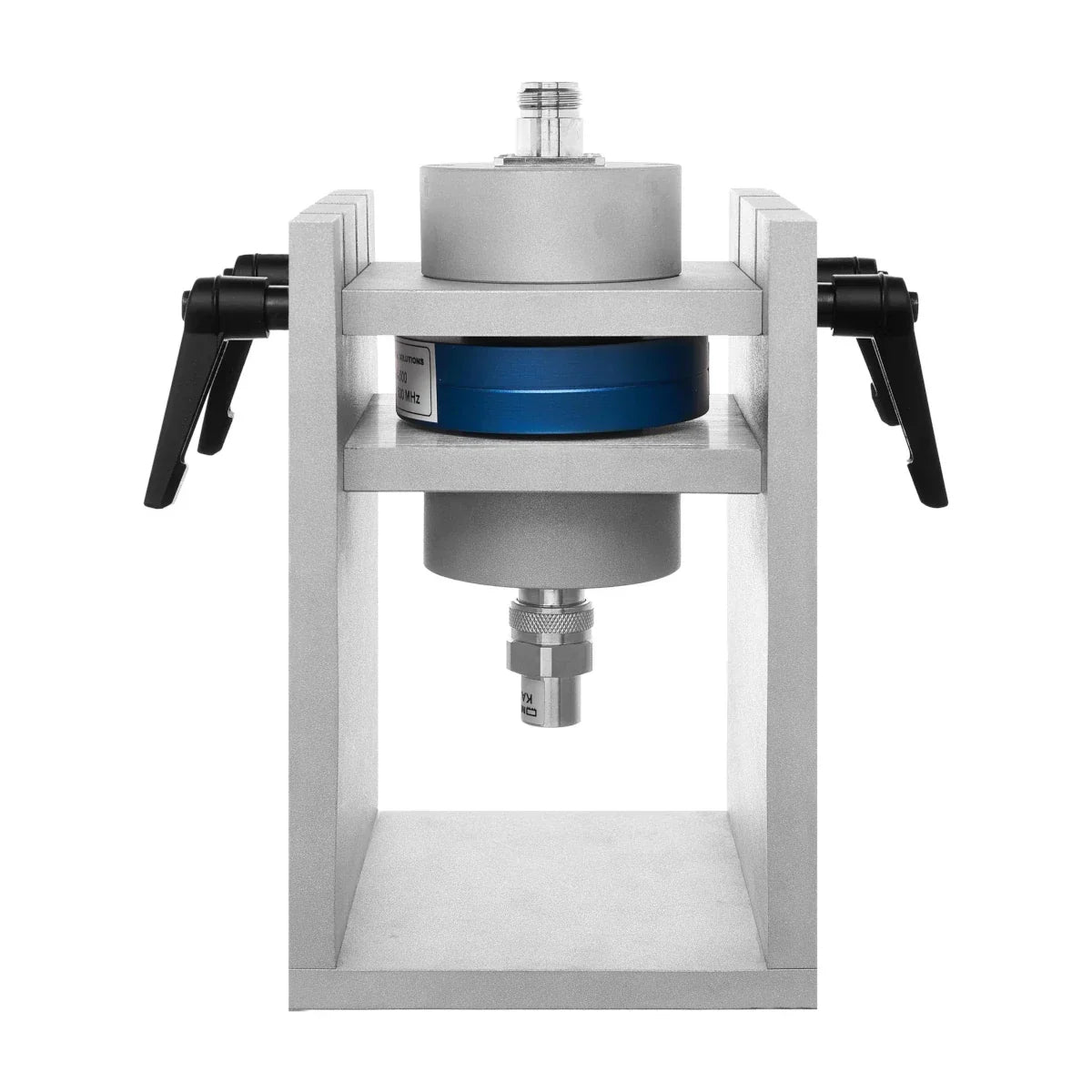

Tekbox supplies a calibration fixture corresponding with the TBCP4 series of fixed aperture current probes.
