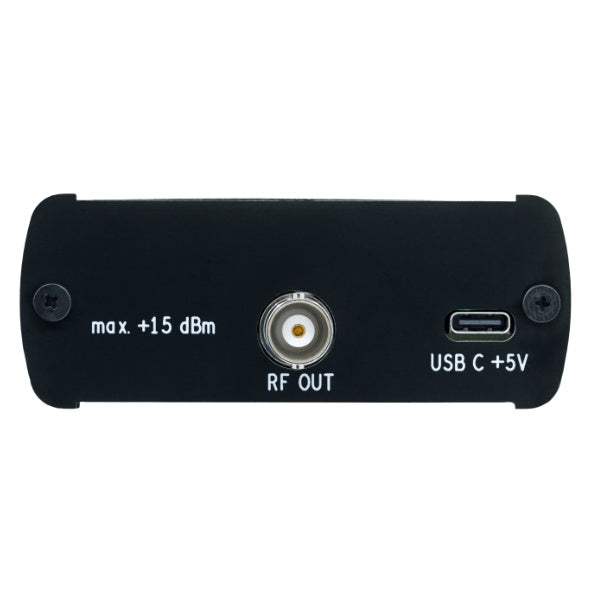

Tekbox TBCS101-TGA DC-coupled Low Noise Amplifier
Use our chat for personal support. Or contact us via +45 31 33 18 19 or salg@GOmeasure.dk
- Frequency range: DC – 40 MHz, 3 dB band width, typical
- Gain: 20 dB, typ. ( ≙ linear voltage gain 10) with 50 Ohm load impedance
- RF-connectors: BNC-female
%20with%2050%20Ohm%20load%20impedance%0ARF-connectors:%20BNC-female%0A
){kind=link}
Discover the possibilities
More information
Description
The TBCS101-TGA is a DC-coupled amplifier with a flat gain from DC – 20 MHz, a 3 dB bandwidth of 40 MHz, a gain of 20 dB and an output power of + 15 dBm
Application
Driver amplifier for high power DC coupled amplifiers such as required for CS101 testing General-purpose amplifier to boost the tracking generator signal of the TBMR-110M measurement receiver.
