Tekbox TBMA1C Biconical Antenna
Use our chat for personal support. Or contact us via +46 73-202 00 59 or sales@GOmeasure.se
- Type: Passive biconical
- Frequency range (Optimized): 20 MHz– 700 MHz
- Frequency range (Characterized): 20 MHz– 1000 MHz
- VSWR: <2.66 (f > 200 MHz)
- Isotropic gain at 3m spacing: -38.64 … 1.26 dBi
- Antenna factor at 3m spacing: 14.19 … 40.56 dB/m
- Maximum continuous input RF power: 2W
- Nominal impedance: 50 Ω
- RF Connector: N type female
- Matching: 1:2 transformer + 1:1 balun
- Tripod Adapter: Thread Size: 1/4 “
- Antenna dimensions: L x W x H: 605 mm x 235 mm x 203 mm (23.80” x 9.26” x 8.00”)
- Antenna weight: 0.58 kg (1.28 lbs)
- Carrying case dimensions: L x W x H: 630 mm x 310 mm x 270 mm (24.80” x 12.2” x 10.6”)
- Carrying case weight: 4.4 kg (9.7 lbs)
:%2020%20MHz%E2%80%93%20700%20MHz%0AFrequency%20range%20(Characterized):%2020%20MHz%E2%80%93%201000%20MHz%0AVSWR:%20%26lt;2.66%20(f%20%26gt;%20200%20MHz)%0AIsotropic%20gain%20at%203m%20spacing:%20-38.64%20%E2%80%A6%201.26%20d...
){kind=link}
Discover the possibilities
More information
Description

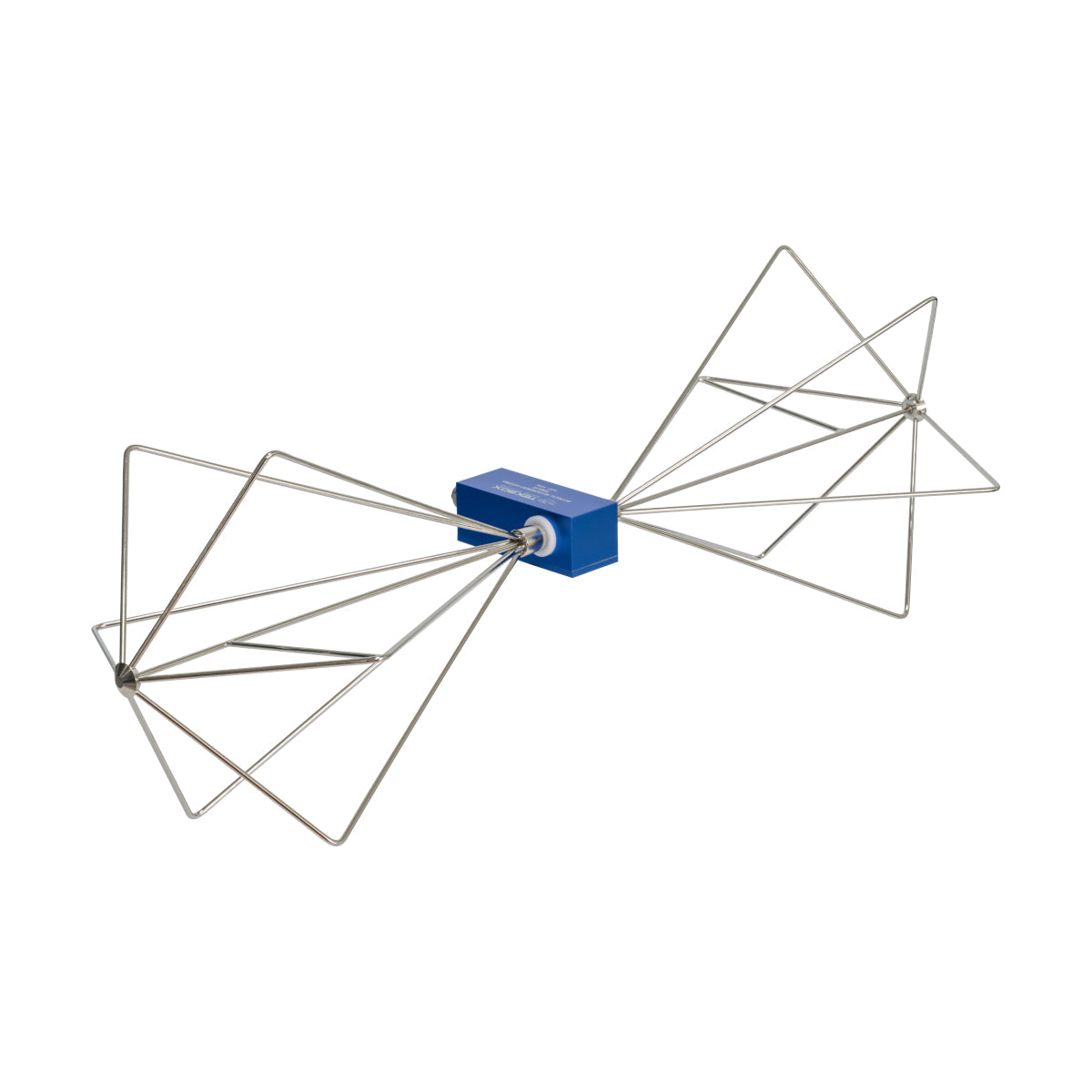

The TBMA1C is a small, lightweight, wideband biconical measurement antenna. With its moderate price, it is targeting radiated emission EMC pre-compliance testing and generating defined field strengths.
It is characterized from 20 MHz to 1 GHz and has a directional pattern similar to a dipole.

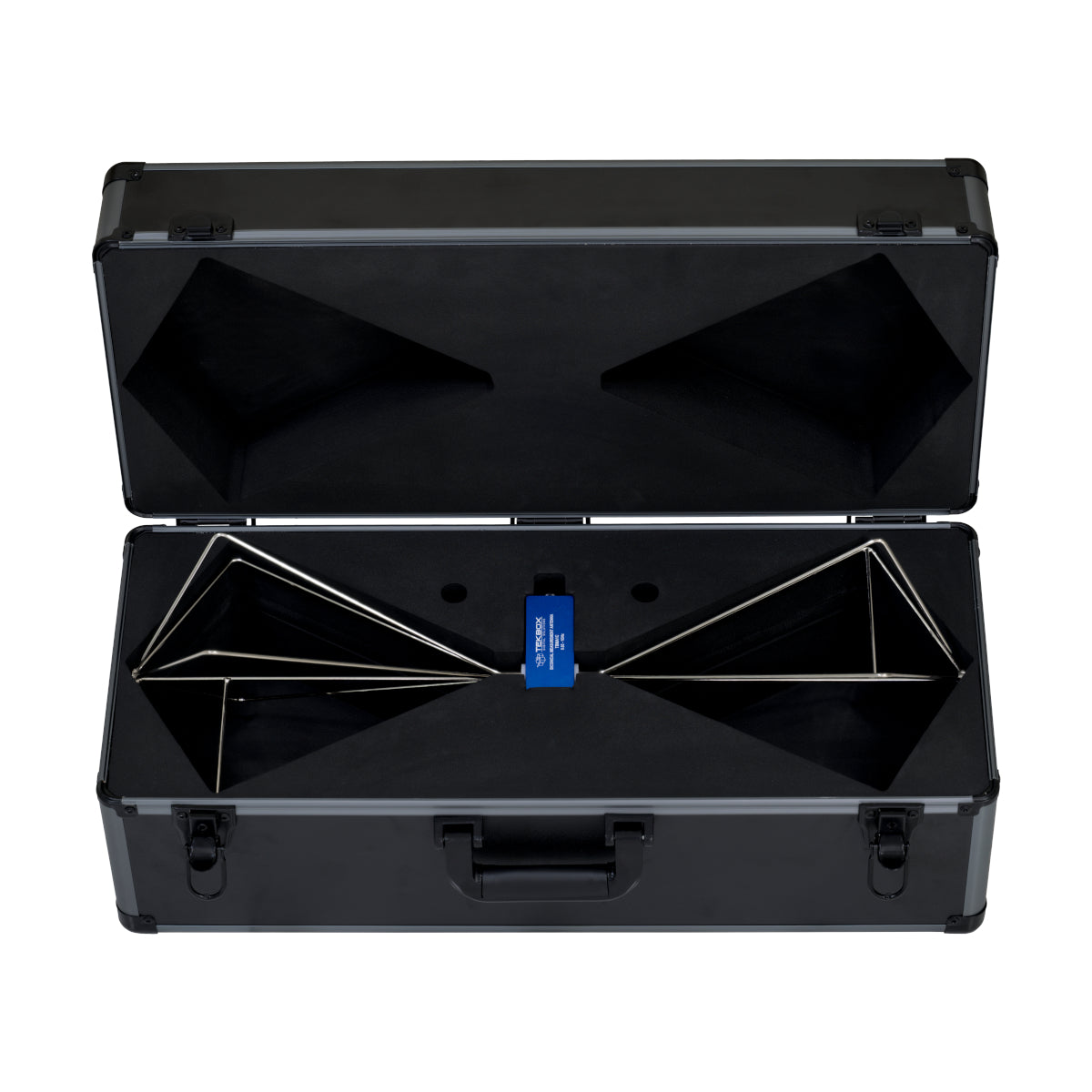

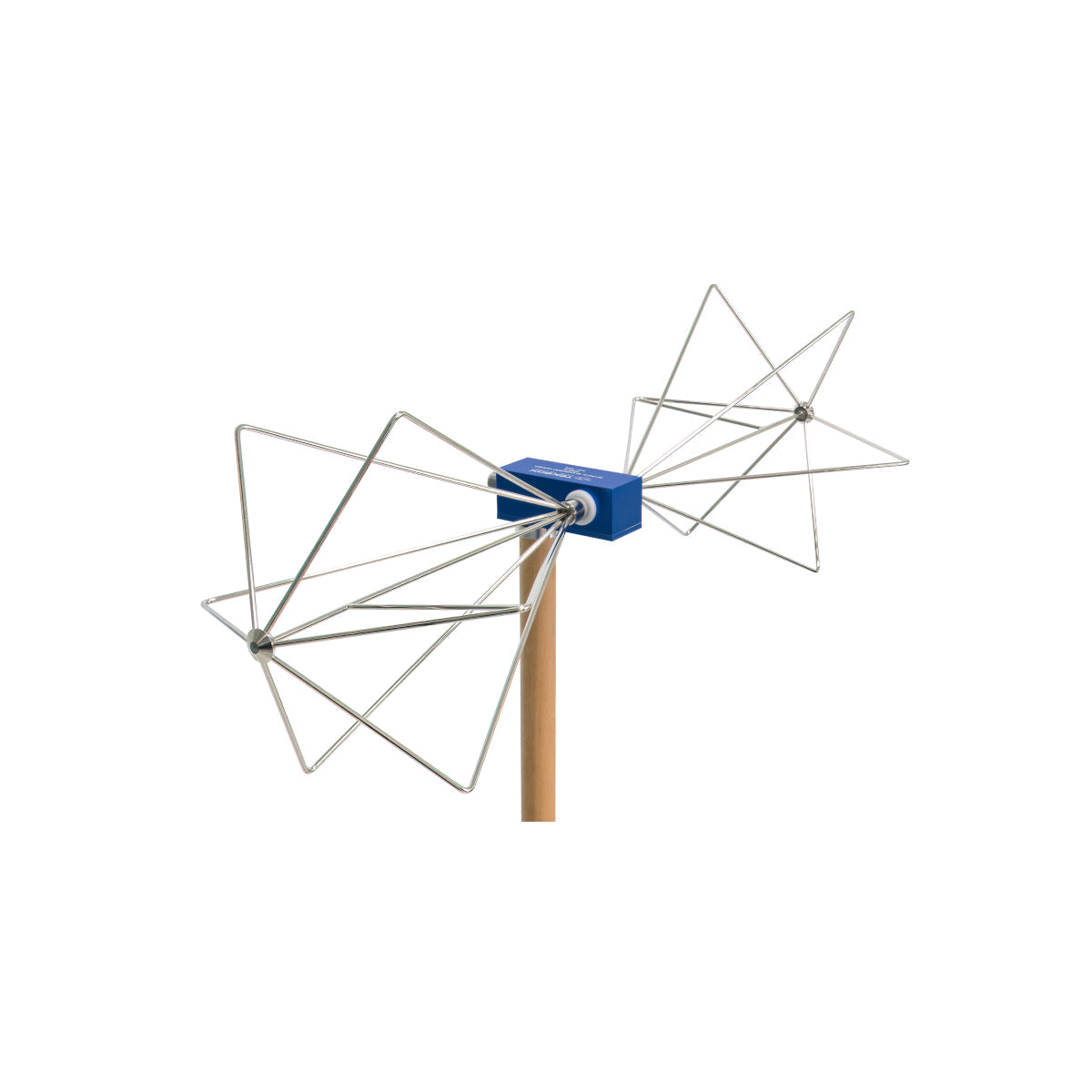

The TBMA1C comes in an aluminum carrying case. A standard ¼” thread makes it easy to connect it to most standard tripods.

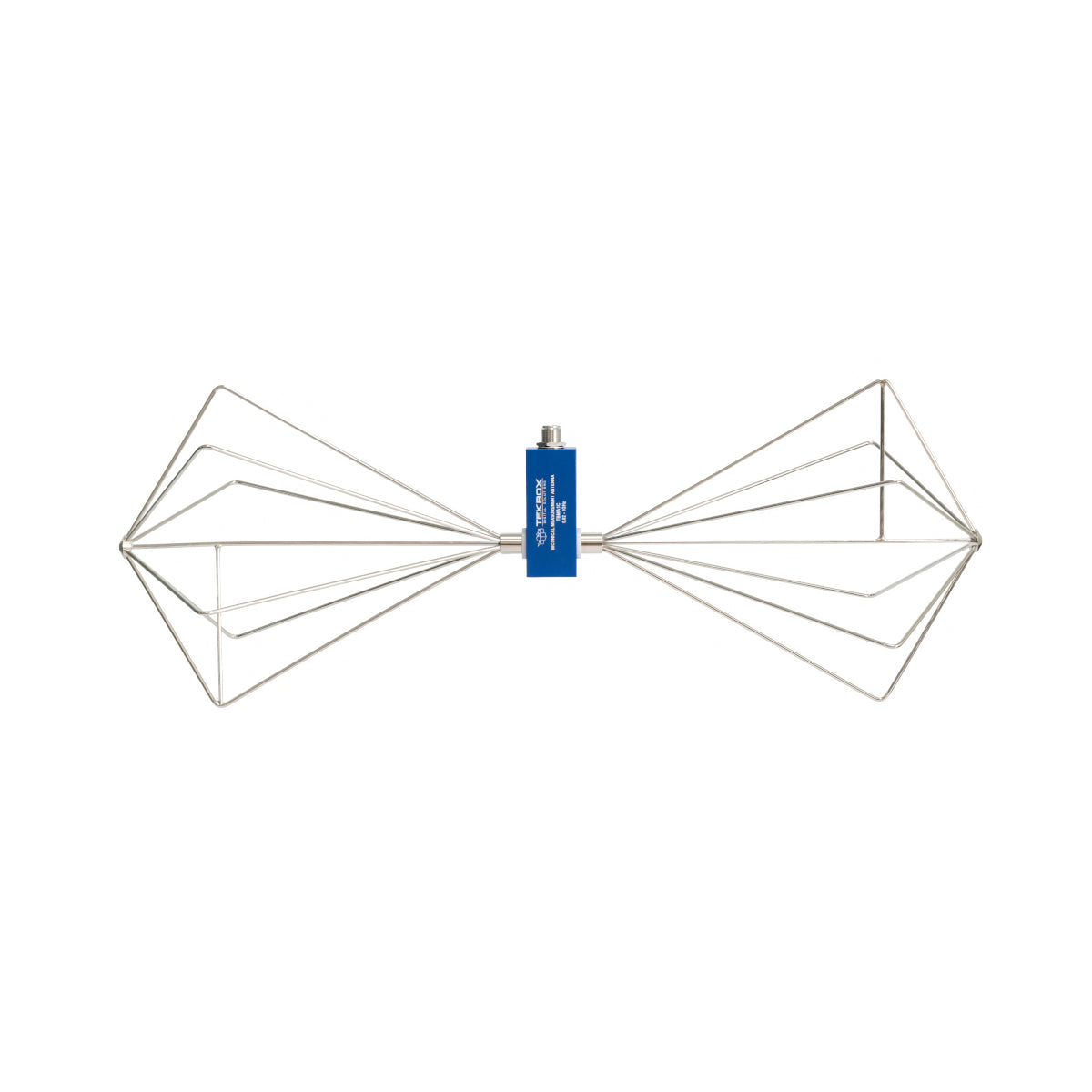

The elements are corrosion-resistant and constructively locked against rotation. They are fed via a wideband balun with 2 W power handling capability. Furthermore, they are protected against build-up of static charge.
Specifications
- Type: Passive biconical
- Frequency range (Optimized): 20 MHz– 700 MHz
- Frequency range (Characterized): 20 MHz– 1000 MHz
- VSWR: <2.66 (f > 200 MHz)
- Isotropic gain at 3m spacing: -38.64 … 1.26 dBi
- Antenna factor at 3m spacing: 14.19 … 40.56 dB/m
- Maximum continuous input RF power: 2W
- Nominal impedance: 50 Ω
- RF Connector: N type female
- Matching: 1:2 transformer + 1:1 balun
- Tripod Adapter: Thread Size: 1/4 “
- Antenna dimensions: L x W x H: 605 mm x 235 mm x 203 mm (23.80” x 9.26” x 8.00”)
- Antenna weight: 0.58 kg (1.28 lbs)
- Carrying case dimensions: L x W x H: 630 mm x 310 mm x 270 mm (24.80” x 12.2” x 10.6”)
- Carrying case weight: 4.4 kg (9.7 lbs)
