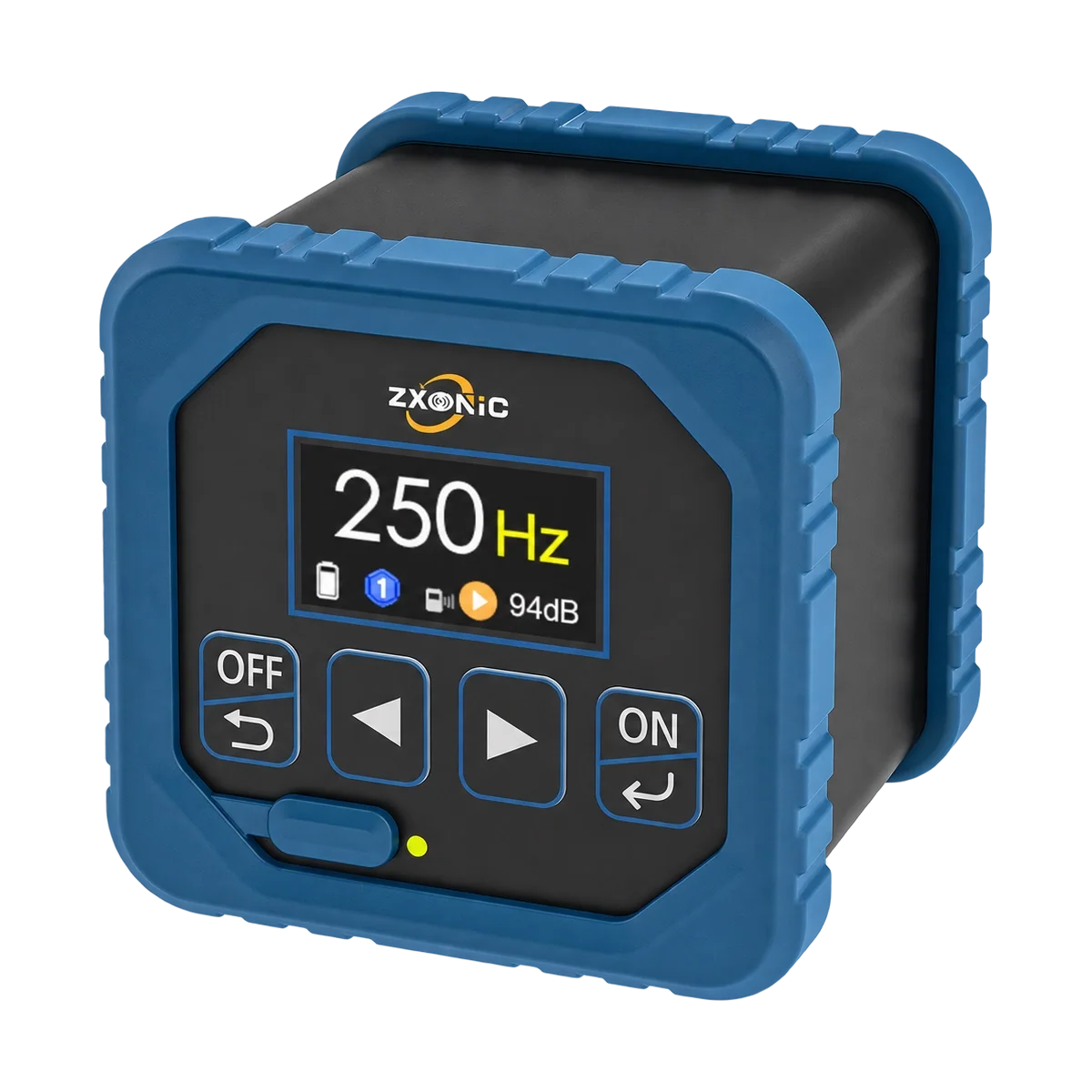

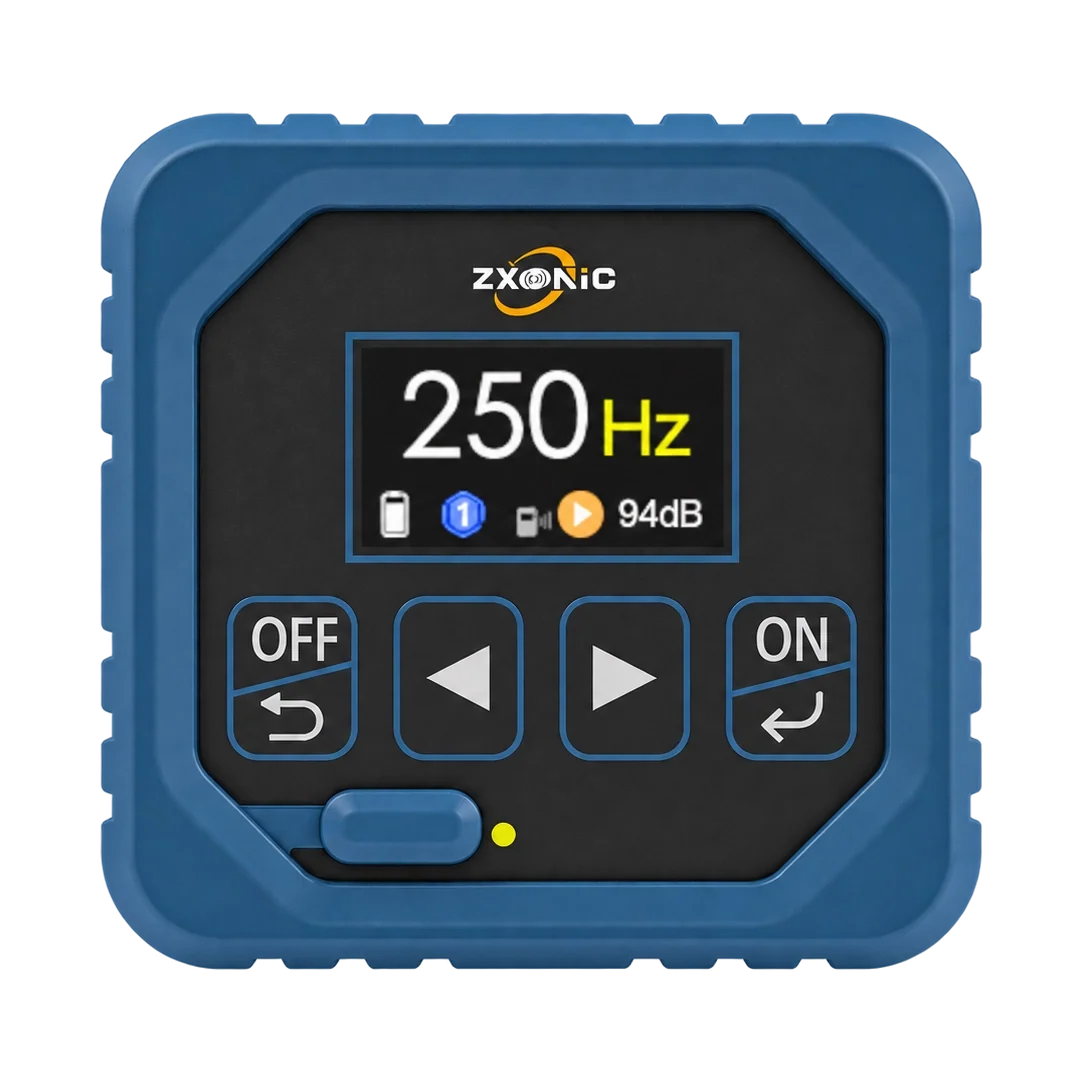

ZXONIC ZX8601 Sound Level Calibrator
Use our chat for personal support. Or contact us via +46 73-202 00 59 or sales@GOmeasure.se
- Conforms to IEC60942 (2017) Class 1, and ANSI S1.40-2006.
- Offer up to three frequency levels 250/500/1000 Hz.
- Offer up to four SPLs at 94/104/114/124 dB.
- Compact and light weight.
- Offer long term stability.
- Fits universal 1/2'' microphones (1'', and 1/4'' microphones with adaptor)
%20Class%201,%20and%20ANSI%20S1.40-2006.%0AOffer%20up%20to%20three%20frequency%20levels%20250/500/1000%20Hz.%0AOffer%20up%20to%20four%20SPLs%20at%2094/104/114/124%20dB.%0ACompact%20and%20light%20weight.%0AOffer%20long%20term%20...
){kind=link}
Discover the possibilities
More information
Description
The high reliability of electronic measuring instruments allows users to perform accurate measurements following a quick verification using our sound level calibrators. In many cases, this check also serves as a daily reference to confirm system functionality, ensuring consistent measurement accuracy over time. ZXONIC offers a variety of calibrator configurations to meet diverse application needs.
The ZXONIC ZX8601 Series Class 1 sound level calibrator is used to perform sound pressure sensitivity calibration on microphones and acoustic measuring instruments. It is compact in size, light-weighted, offers long-term stability, and is convenient to use. The performance complies with the regulations for a Class 1 Sound Calibrator specified in IEC 60942:2017.
Features
- Conforms to IEC60942 (2017) Class 1, and ANSI S1.40-2006.
- Offer up to three frequency levels 250/500/1000 Hz.
- Offer up to four SPLs at 94/104/114/124 dB.
- Compact and light weight.
- Offer long term stability.
- Fits universal 1/2'' microphones (1'', and 1/4'' microphones with adaptor)
Standards
- IEC 60942:2017 Class 1
- ANSI S1.40-2006
Applications
- Calibration of sound level meters
- Calibration of microphones
- Calibration of sound measurement instrumentations
Documents
Options
Video
The high reliability of electronic measuring instruments allows users to perform accurate measurements following a quick verification using our sound level calibrators. In many cases, this check also serves as a daily reference to confirm system functionality, ensuring consistent measurement accuracy over time. ZXONIC offers a variety of calibrator configurations to meet diverse application needs.
The ZXONIC ZX8601 Series Class 1 sound level calibrator is used to perform sound pressure sensitivity calibration on microphones and acoustic measuring instruments. It is compact in size, light-weighted, offers long-term stability, and is convenient to use. The performance complies with the regulations for a Class 1 Sound Calibrator specified in IEC 60942:2017.
Features
- Conforms to IEC60942 (2017) Class 1, and ANSI S1.40-2006.
- Offer up to three frequency levels 250/500/1000 Hz.
- Offer up to four SPLs at 94/104/114/124 dB.
- Compact and light weight.
- Offer long term stability.
- Fits universal 1/2'' microphones (1'', and 1/4'' microphones with adaptor)
Standards
- IEC 60942:2017 Class 1
- ANSI S1.40-2006
Applications
- Calibration of sound level meters
- Calibration of microphones
- Calibration of sound measurement instrumentations
